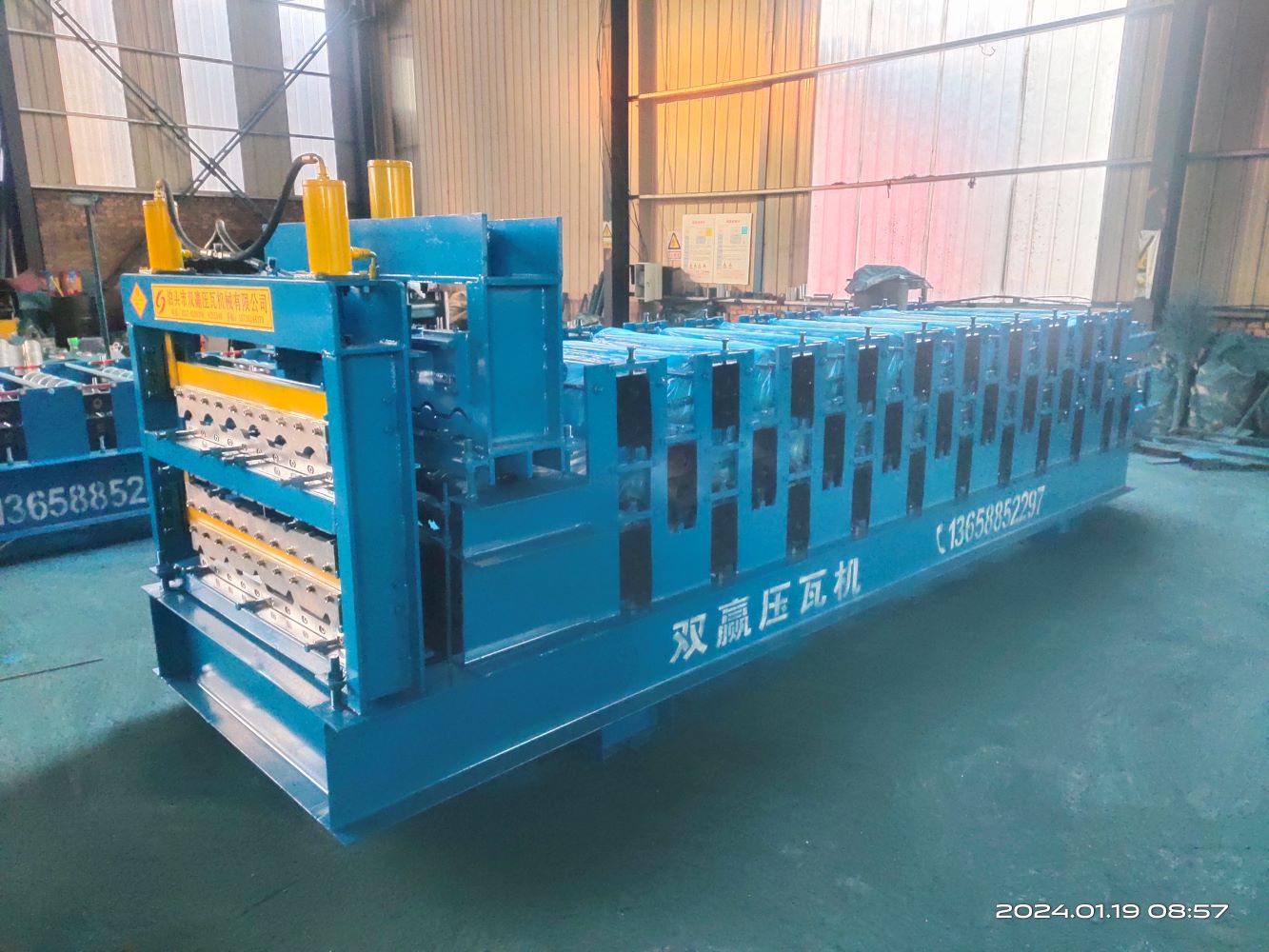

**Comprehensive Guide to the 840+900+800 Glazed Tile Triple Roofing Machine – Model 5**
The **840+900+800 Glazed Tile Triple Roofing Machine – Model 5** represents the pinnacle of versatility, efficiency, and energy conservation in the realm of roll forming machines. Tailored to produce three distinct tile profiles (840, 900, and 800 glazed tiles), this machine caters perfectly to clients seeking a diverse range of tile profiles while optimizing both space and expenditure. Boasting a robust structure, remarkable production capacity, and cutting-edge automation, this machine emerges as a market-leading, cost-effective, and dependable solution.
### Key Features and Advantages
#### Multifunctional Design
The standout feature of this machine is its multifunctionality. It supports the production of three different tile profiles using a single machine, thereby substantially reducing initial investment and ongoing maintenance costs. Switching between profiles is swift and seamless, achieved by merely adjusting parameters within the control system, eliminating the need for mold replacements.
#### High-Precision Production
Precision is paramount in tile manufacturing, and this machine delivers. Utilizing high-precision forming molds and a PLC-automated control system, it ensures tile dimensions are meticulously accurate with minimal deviation. The forming rollers, crafted from 45# steel with hard chrome plating, enhance wear resistance, resulting in smooth, aesthetically pleasing tiles that meet the highest quality standards.
#### Durable Structure
The machine’s main frame is robustly welded with 300mm H-beam, ensuring operational stability and longevity. Coupled with 70mm solid shafts and 14mm thick side panels, it boasts exceptional load-bearing capacity, enabling continuous high-efficiency operation without compromise.
#### Efficient and Stable Operation
A fully automated PLC control system simplifies machine operation and guarantees consistent production quality, featuring a cutting-to-length functionality that enhances flexibility. The variable frequency drive maintains a steady production speed of 8-15 meters per minute, ideal for fulfilling high-volume orders with precision and speed.
#### Energy Saving
Powered by a 4kW reducer motor with a 1-inch chain drive, the machine offers high efficiency while consuming minimal power. The hydraulic cutting system, equipped with Cr12 die steel blades, ensures clean cuts and minimal material waste, further reducing operational costs and enhancing sustainability.
### Technical Parameters
Below is a detailed specification table outlining the technical attributes of the 840+900+800 Glazed Tile Triple Roofing Machine – Model 5:
| **Specification** | **Details** |
|—————————|————————————————|
| **Forming Width** | 840mm, 900mm, 800mm (effective coverage) |
| **Feeding Width** | 1000mm steel coil |
| **Number of Forming Rollers** | 15 rows |
| **Shaft Diameter** | 70mm solid shafts |
| **Side Panel Thickness** | 14mm |
| **Control System** | PLC automated control, multilingual UI |
| **Production Speed** | 8-15 meters per minute |
| **Cutting System** | Hydraulic cutting, Cr12 die steel blades |
| **Power Supply** | 380V, 50Hz, 3-phase, 4kW motor |
### Contact Information
For inquiries or orders, please do not hesitate to reach out to us via:
– **WhatsApp**: +8613832784260
– **Email**: zhaohuabb@163.com
The 840+900+800 Glazed Tile Triple Roofing Machine – Model 5 is a testament to innovation and excellence, designed to meet the diverse needs of modern roofing manufacturers. With its impressive array of features and benefits, it stands ready to revolutionize your production process, enhancing efficiency, reducing costs, and delivering top-quality tiles consistently. Contact us today to learn more about how this machine can transform your business.
